Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder
ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power
Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.
- Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
- Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
-
Digital control ensures whisper: quiet operation and consistent performance

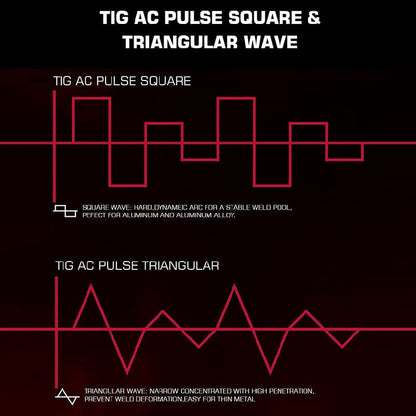

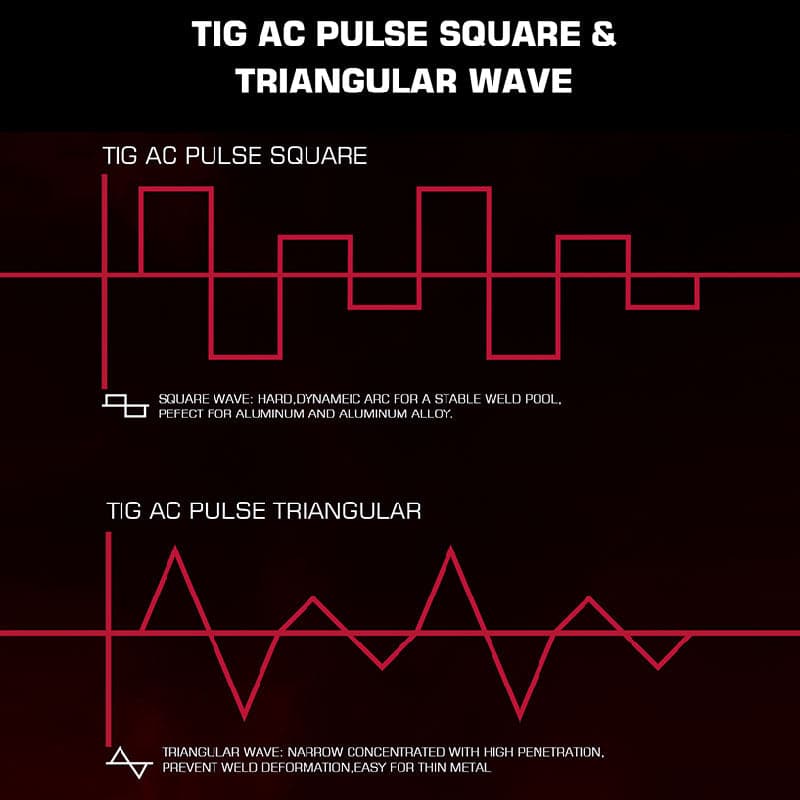

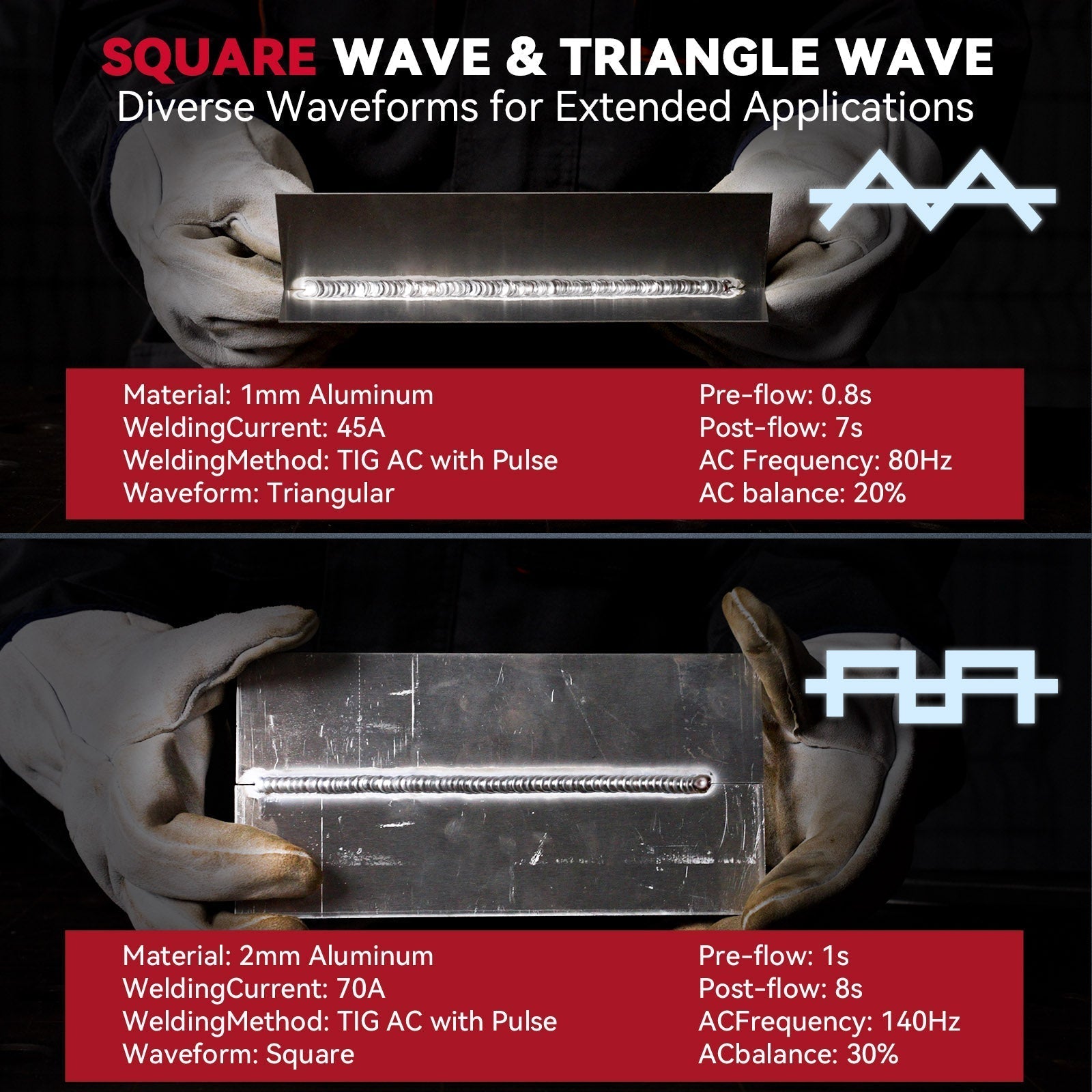

Smart Waveforms for Flawless Results
- Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
- Square wave AC crushes aluminum oxide for cleaner welds and better arc control
Built for Real-World Convenience

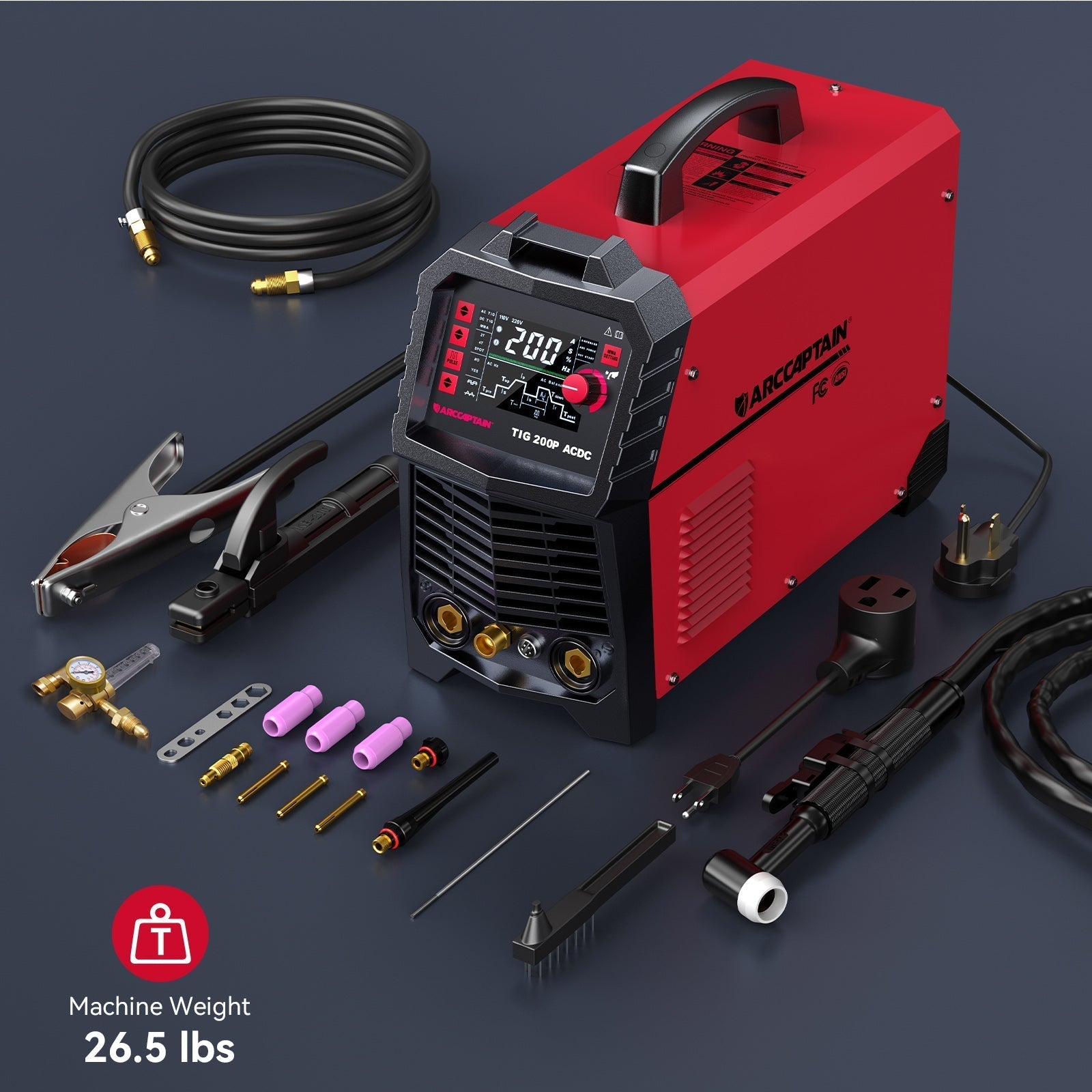

- Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility
- Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds
-

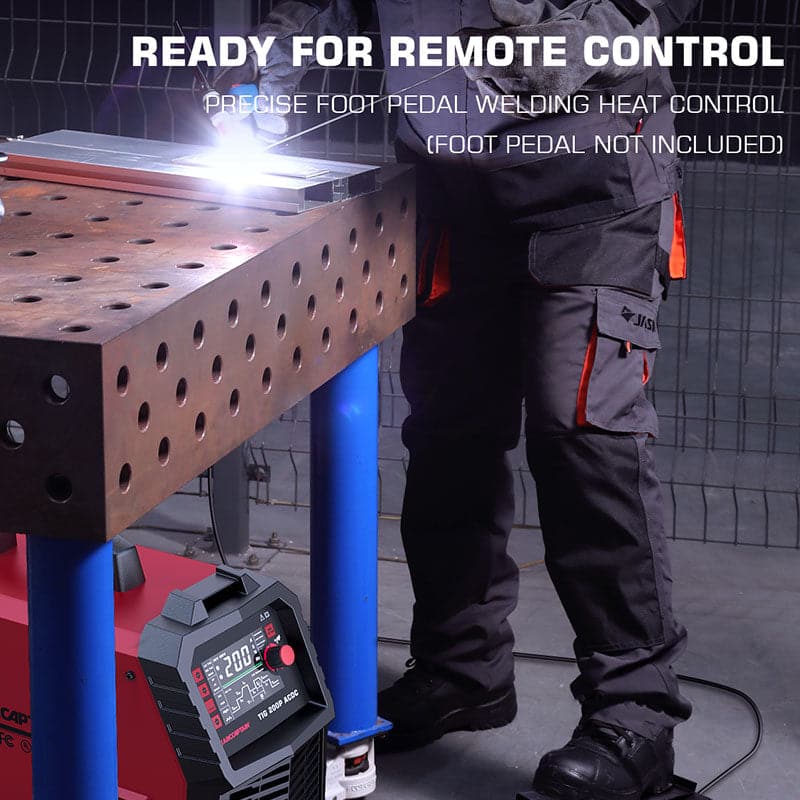

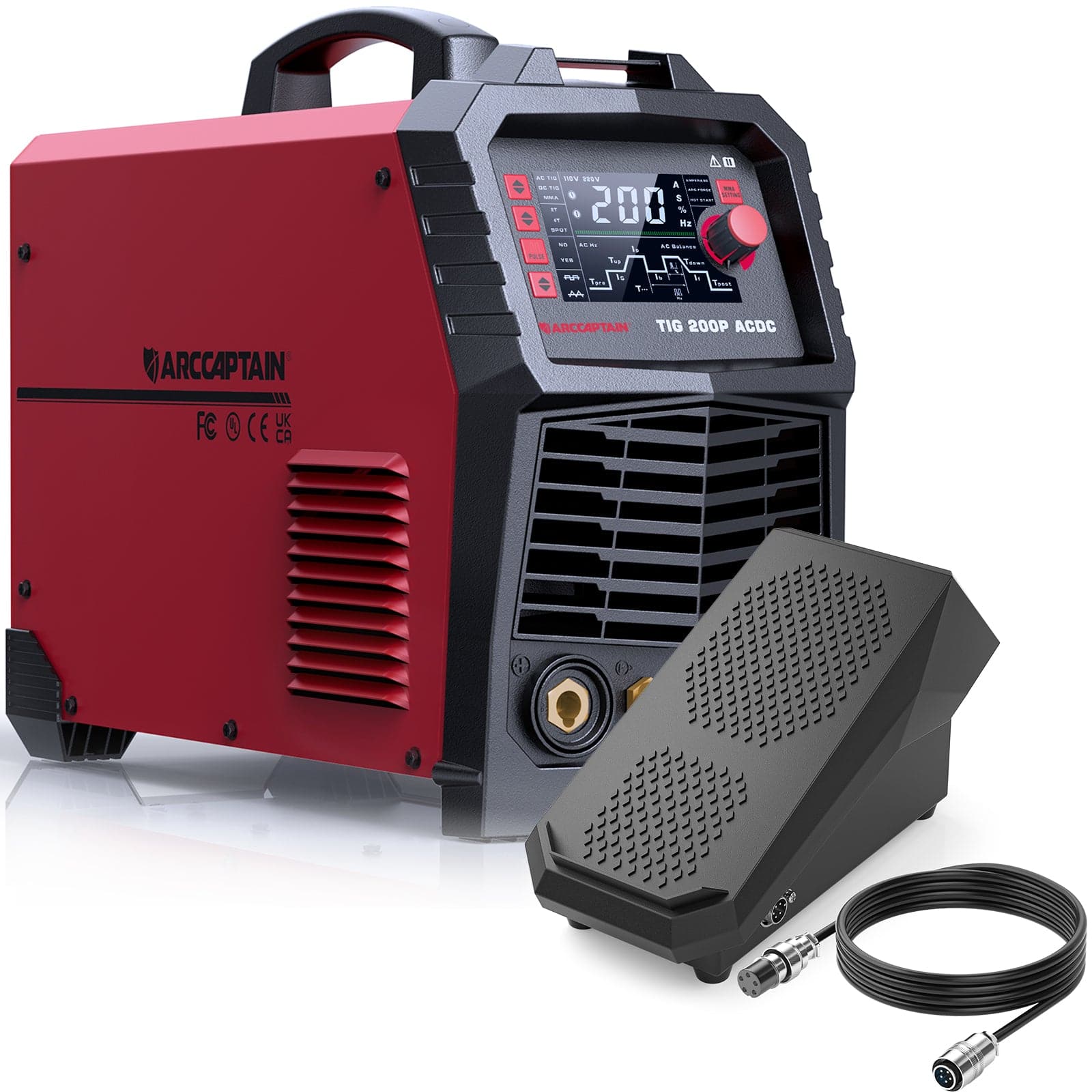

Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)

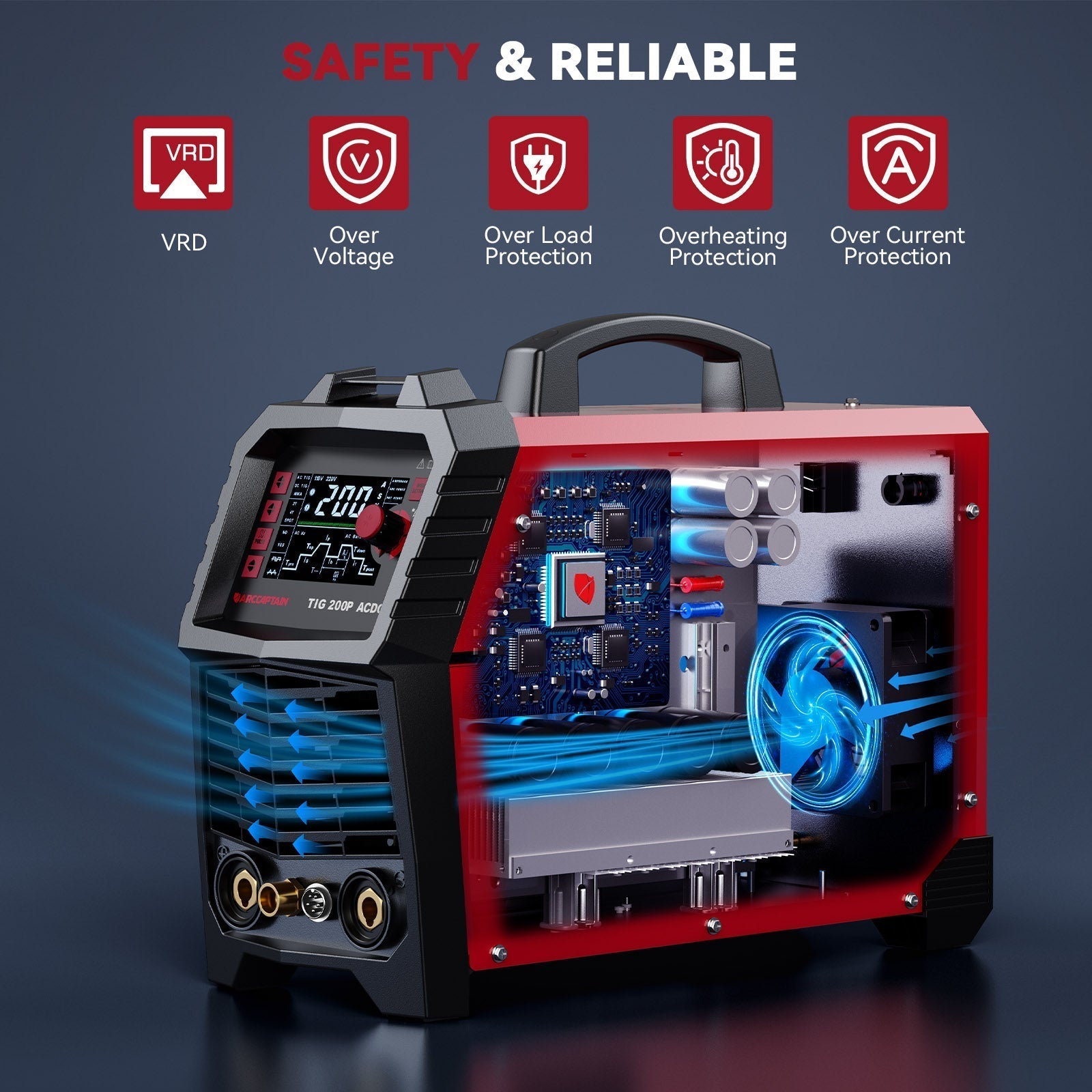

Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.
|
Project Name |
Unit |
Value |
||
|
Power voltage |
VAC |
AC110V±15% AC220V±15% |
|
|
|
Input frequency |
Hz |
50 |
||
|
Rated input current |
A |
33@TIG 35@MMA |
||
|
Capacity of power supply |
KVA |
6.0@TIG 7.5@MMA |
||
|
Output current range (TIG) |
A |
10~120(110 v) 10~200 (220v) |
|
|
|
Output current range (MMA) |
A |
10~110(110v) 10~160(220v) |
|
|
|
Arc force range |
A |
0~40 |
||
|
Hot start current range |
A |
0~80 |
||
|
No-load voltage |
V |
60 |
||
|
Rated working voltage |
V |
18@TIG 26.4@MMA |
||
|
AC output frequency |
Hz |
20~250 |
||
|
AC balance |
% |
20~60 |
||
|
Background level |
A |
10~200 |
||
|
Pulse frequency |
Hz |
0.5~200 (DC) 0.5~25(AC) |
||
|
Pulse duty factor |
% |
5~95 |
||
|
Pre-flow time |
S |
0~5 |
||
|
Post-flow time |
S |
0~15 |
||
|
Rising time |
S |
0~15 |
||
|
Fall time |
S |
0~15 |
||
|
Remote control |
- |
Yes |
||
|
Arc start mode |
- |
HF arc starter |
||
|
Efficiency (%) |
% |
80 |
||
|
Duty cycle (%) |
% |
TIG: 200@25% - MMA: 160@25% |
||
|
Power factor |
- |
0.70 |
||
|
Type of cooling |
- |
Air cooled |
||
|
Working temperature range |
°C |
-10~+40 |
||
|
Storage temperature range |
°C |
-25~+55 |
||
|
Protection class |
- |
IP21S |
||
|
Insulation class |
- |
B |
||
The welder performs really well, but the AC welding settings could be explained more clearly, especially for beginners.
36% increase in arc initiation efficiency
Multifunctional AC DC TIG welder
Packed with essential features, this machine excels at aluminum welding — outperforming comparable models by 36%.

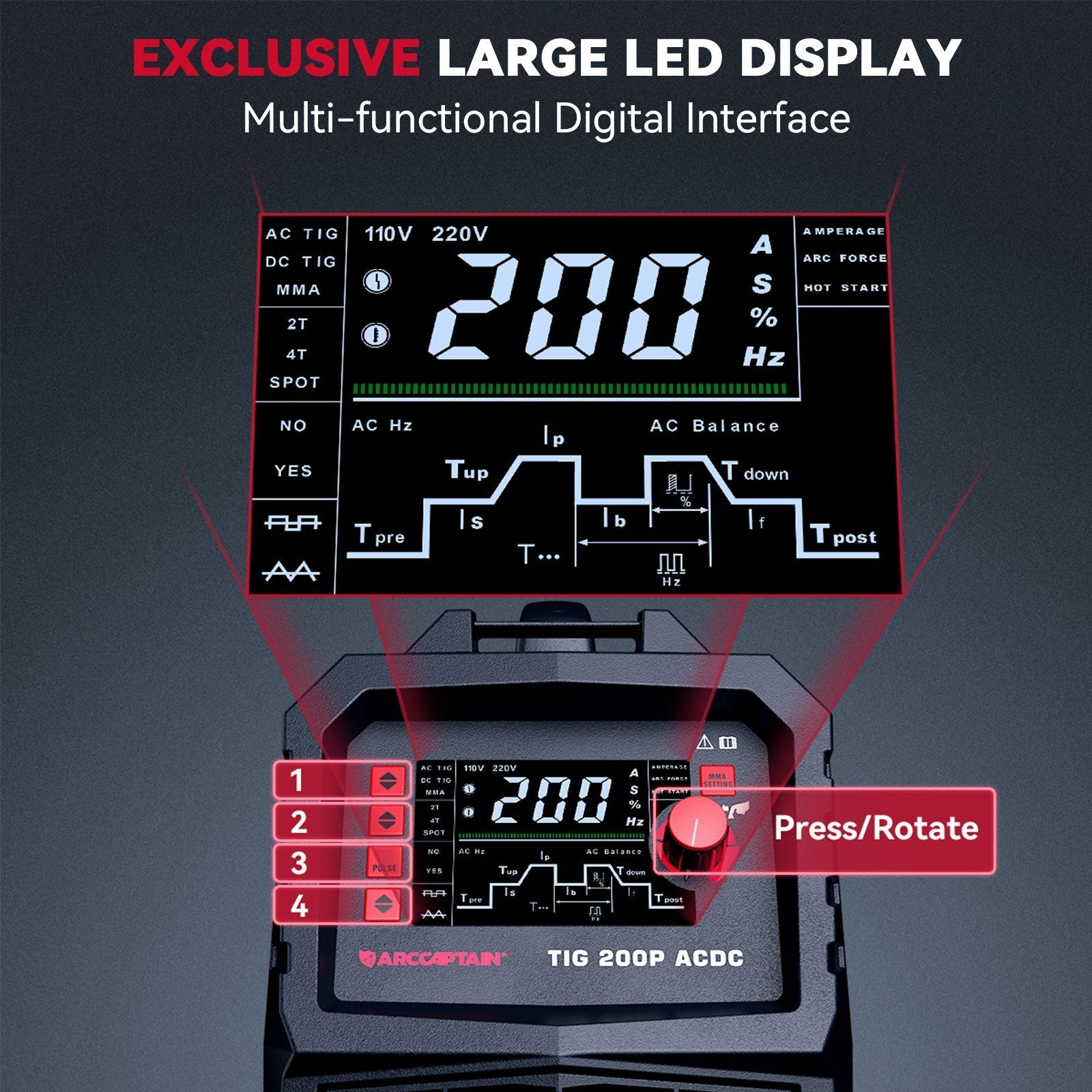

Large LED Display
Easily adjust settings for any welding mode. Get clear data without removing your helmet.
AC DC PULSE WELDER
Pulse function helps you weld thin plates more easily
³/₆₄ inch to ¼ inch thickness
Capable of welding a variety of metal materials, it's a professional welder's tool of choice.
TIG SPOT WELDING
This ac dc TIG welder also features TIG spot welding capabilities.
Outstanding stick welding function
Equipped with outstanding stick welding function.
Frequantly asked questions
where is it shipped from ?
where is it shipped from ?
Frequently Asked Questions From local warehouses in the US and Canada, with fast and free delivery.
Can it weld aluminium ?
Can it weld aluminium ?
Yes. TIG200P AC/DC supports AC TIG mode designed specifically for aluminum. It handles thin sheets (as low as 0.9 mm) and thick plates up to 6 mm with a stable arc and clean weld beads.
what types of metals can it weld ?
what types of metals can it weld ?
Aluminum, stainless steel, mild steel, copper, and more. Use AC TIG for aluminum and DC TIG for steel, stainless steel, and copper.
What's the differance between DC and AC TIG ?
What's the differance between DC and AC TIG ?
AC TIGis used for aluminum and magnesium.
DC TIGis used for steel, stainless steel, and copper.
The AC wave also cleans the oxide layer on aluminum, producing smoother and brighter welds.
